XS650: Carb Boots and Diaphragms   1 comment

Some time ago I had to rebuild my carbs, BS34s from a 3L1 motor, was really no big deal, they had been sitting a while so I cleaned them and tarted em up. Rejetted, new needles. boots, diaphragms etc.

The original Yamaha boots were hard and cracking after just 30 odd years. Anyway I ordered new boots etc and installed the carbs. After 3 months the boots had cracked to shit on the outside and begun to melt on the inside. WTF? And European fuels dont have the same ethanol content as North American-I see the other day that this will be changing in the near future. This was my first experience with that particular supplier I cant even bring myself to name, but we all know who he is with his cheap chinese crap.

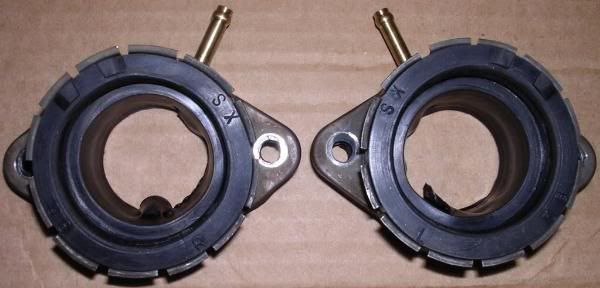

damage like this

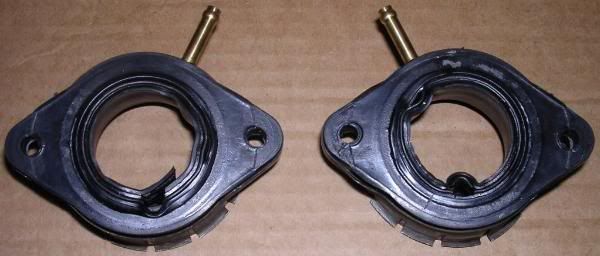

and this



Anyway, to cut a short story longer, JBM Industries came to the rescue. Theyve been making stuff for the aircraft industry.

These boots dont use the original metal cage and will secure your carbs unsupported. They make BS38 boots both straight and angled flange and BS34 boots. Also the diaphragms.





NOTE. These will have no problems with ethanol containing fuels.

My BS38s are running great. It’s a shame as I prefer the BS34s. I guess it’s good that Paypal is my friend.

JBM’s first carb diaphragms were for our Mikuni CV BS 38mm. Next were those for the BS 34’s. They’ve gone on to design and manufacture parts and compression molding tooling for a variety of vintage motorcycle carburetors. Don James, head of JBM, uses only a specified quality TSR heat cured compression molded rubber compound. (Not that crap recycled, zero quality control crap we are becoming used to from my favourite low service partner). Molds, tooling and production are all done ‘in house’.

TSR … Technically Specified Rubber, a system for describing rubber compound formulations. Graded according to dirt, ash, nitrogen, volatile matter content and the Plasticity Retention Index (PRI).

A first rate design, tooling and molding operation with excellent customer service!

Cost is very reasonable. Reflects a lack of ‘middlemen, mark-up merchants’  (distribution/wholesale/retail links). Products sold directly at a reasonable margin to the customer/user. A sound business model.

JBM Industries – thumbs-up – keep up the good work guys.

About these ads

Posted January 10, 2011 by xscafe in Carb - Boots

Tagged with , , , , ,

One response to “XS650: Carb Boots and Diaphragms

Subscribe to comments with RSS.

  1. I would always just reuse the old carb boots by applying a coating of black windshield urethane to the outside of the rubber to be underneath the metal cage.
    The new vendor version does look better being rubber around the metal and to have an angle version is nice too.
